HOWTO: Deploy and Configure VMware vRealize Log Insight 4.5
VMware vRealize Suite vRealize Log Insight HOWTO
Published on 15 July 2017 by Christopher Lewis. Words: 462. Reading Time: 3 mins.
Introduction
The deployment of vRealize Log Insight can be completed in a few easy steps:
- Deploying the vRealize Log Insight Appliance
- Configuring the first vRealize Log Insight Appliance
- (optional) Configuring additional vRealize Log Insight Appliance(s)
- Configuring vSphere Integration
Deploying the vRealize Log Insight Appliance
- Navigate to the VMware vCenter Server Web Client (
https://vcenter.fqdn/vsphere-client/

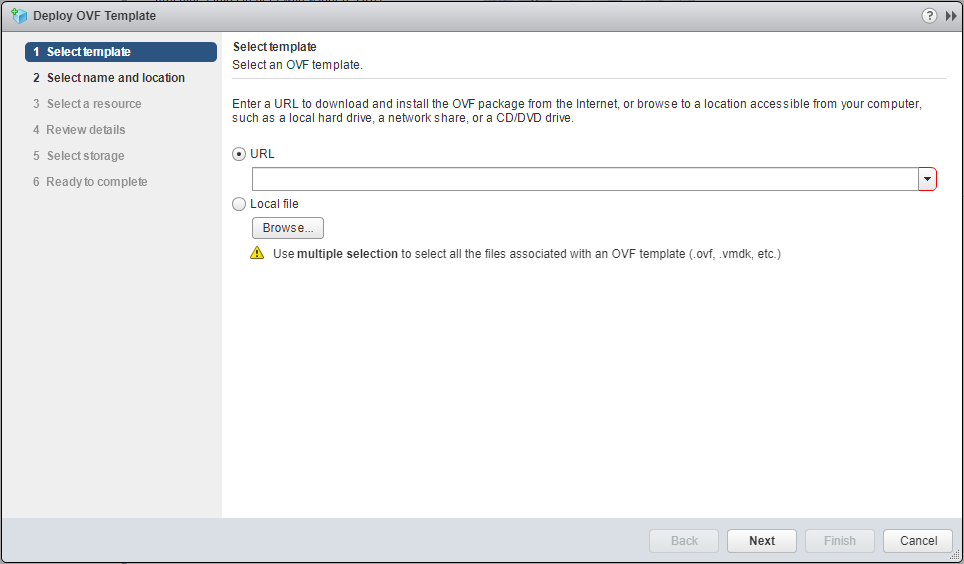

) and log in using appropriate credentials. - Right click on the vCenter Server in the navigation window and select Deploy OVF Template…

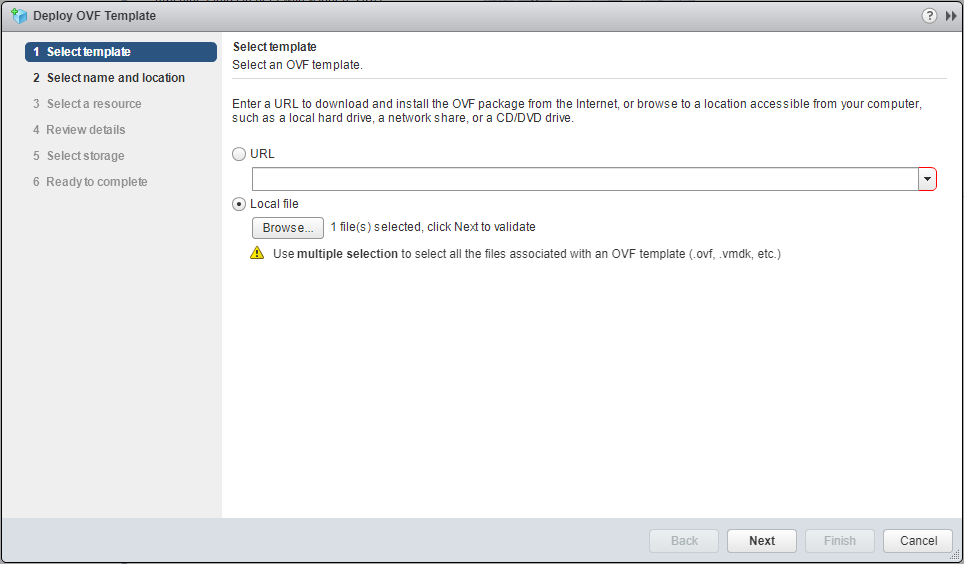

- Click Browse and navigate to the vLI OVA file and click Open.

- Click Next.

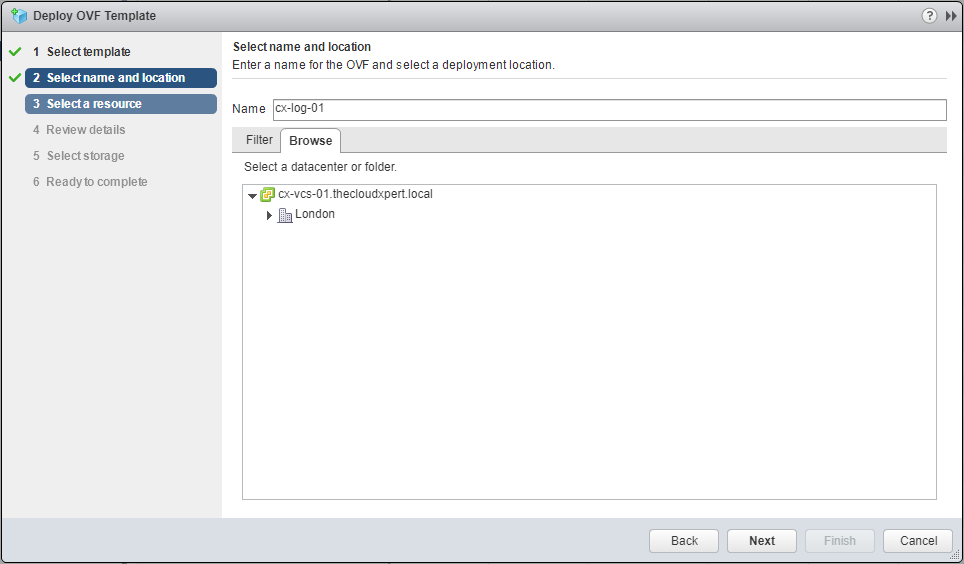

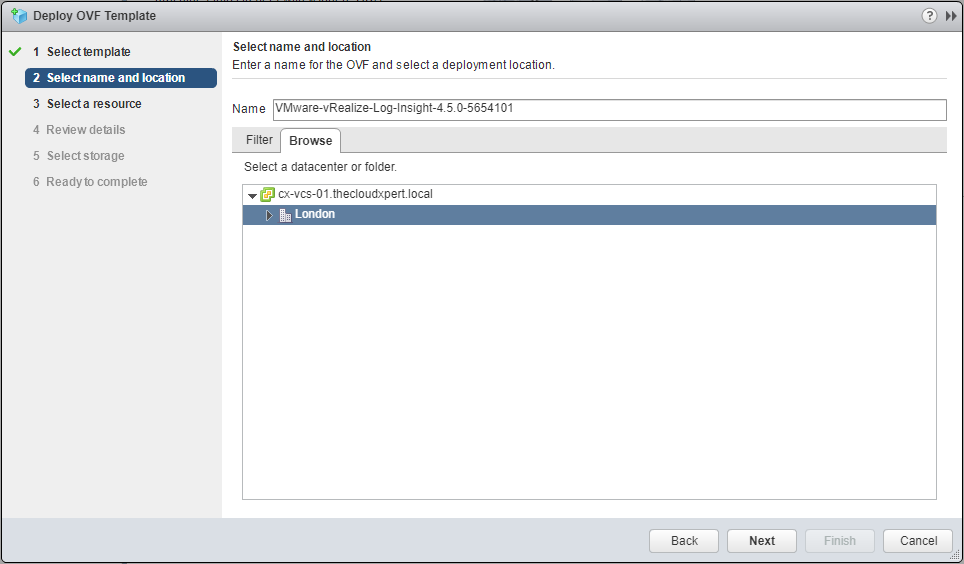

- Type the Name of the virtual machine (within vCenter - this doesn’t set the hostname) and select the VM folder to deploy the OVA.

- Click Next.

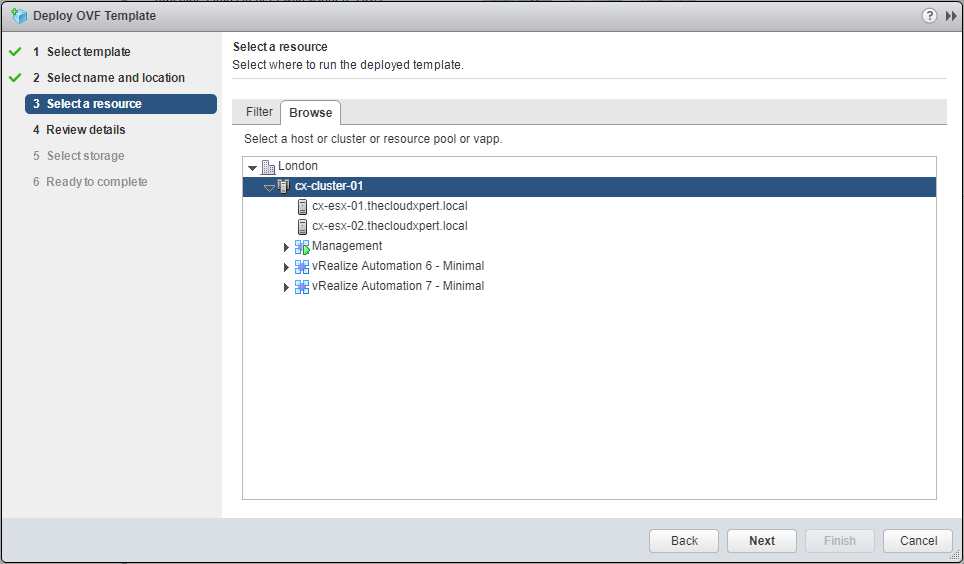

- Select the Resource (cluster, host or vApp) where you want to deploy vLI and click Next.

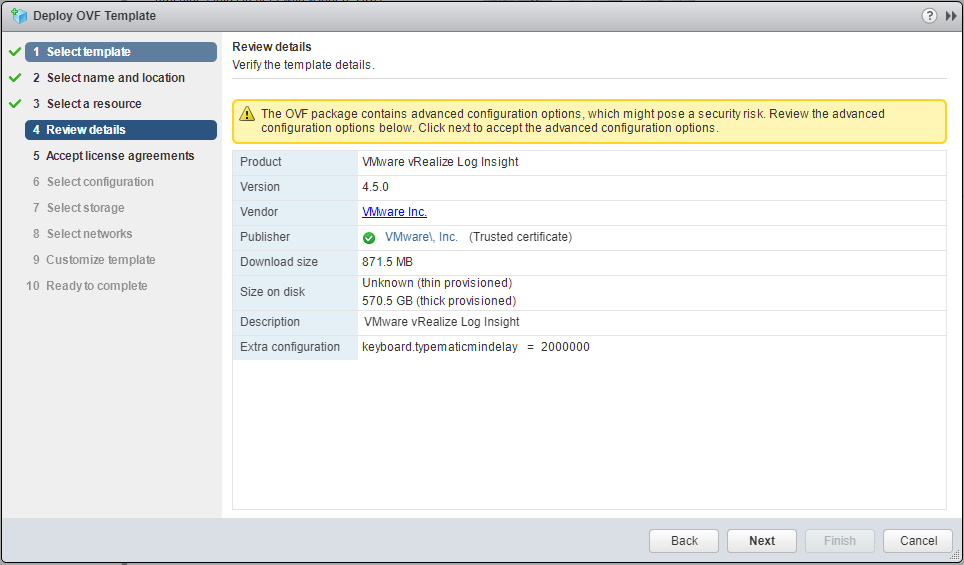

- Click Next.

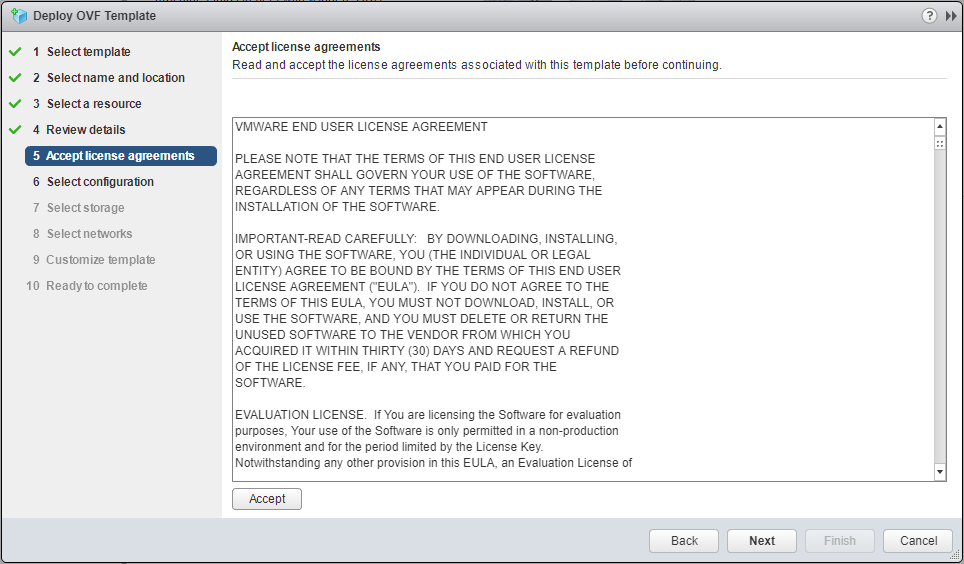

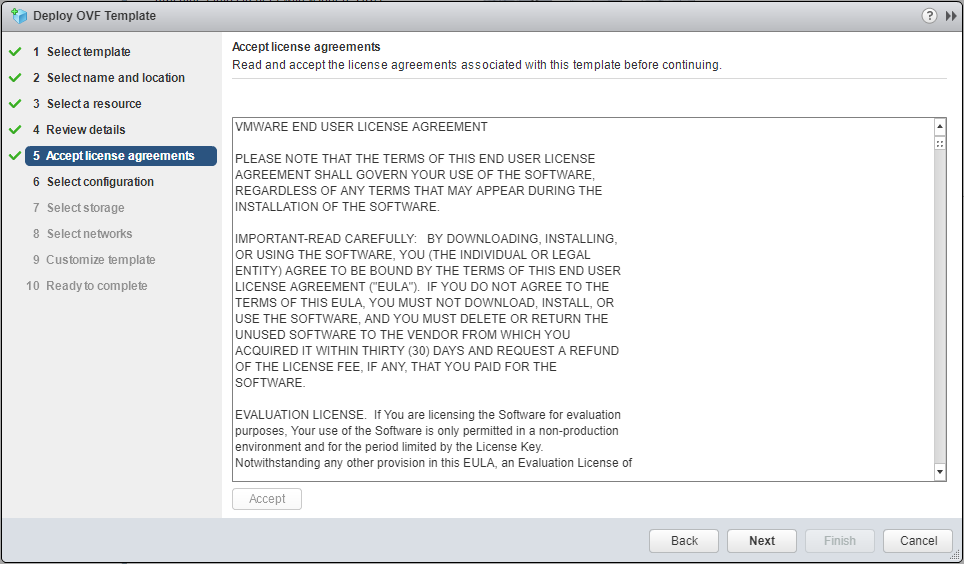

- If you have nothing better to do, read the EULA, then click Accept.

- Click Next.

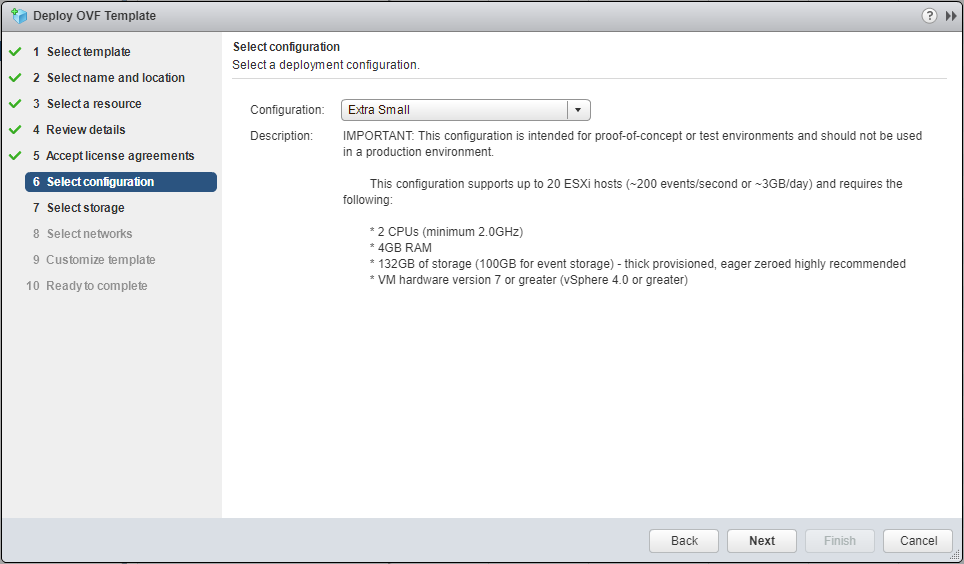

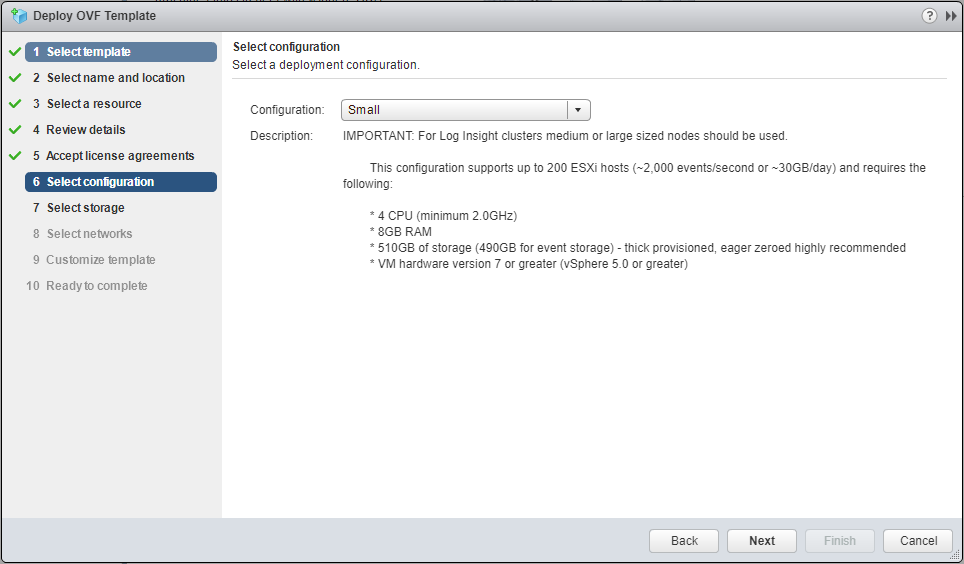

- Select the desired the appropriate appliance size from the Configuration dropdown.

- Click Next.

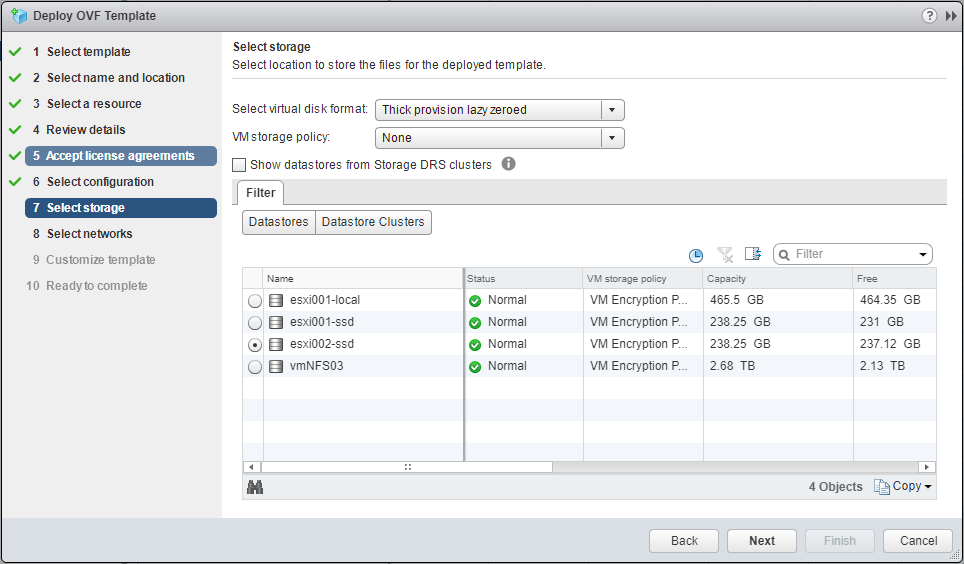

- Select the Storage location and click Next.

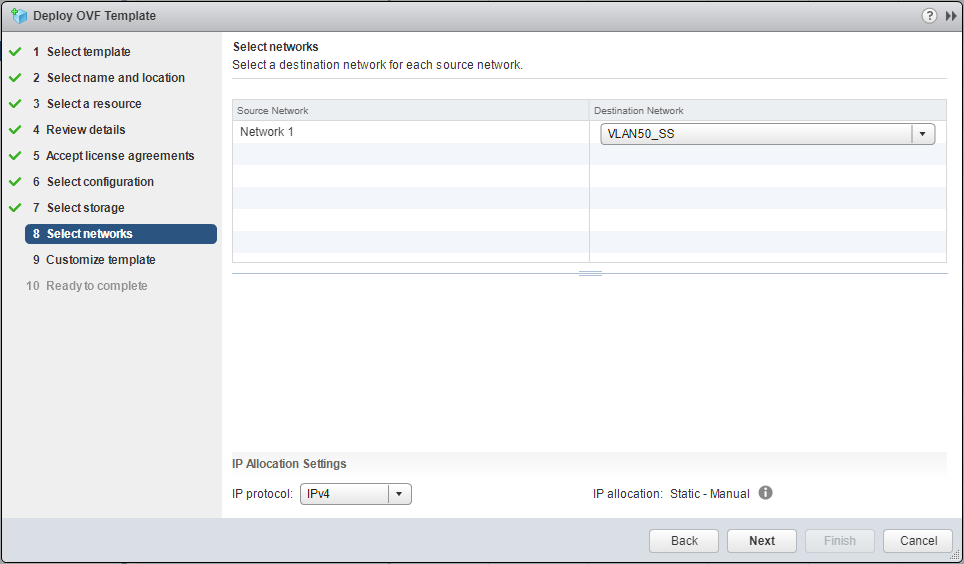

- Select the Destination Network from the dropdown and click Next.

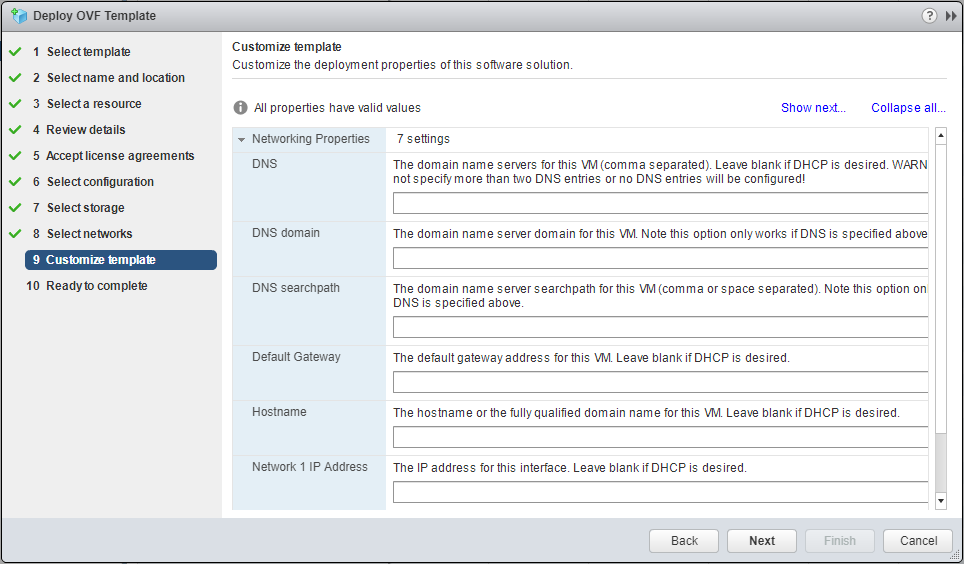

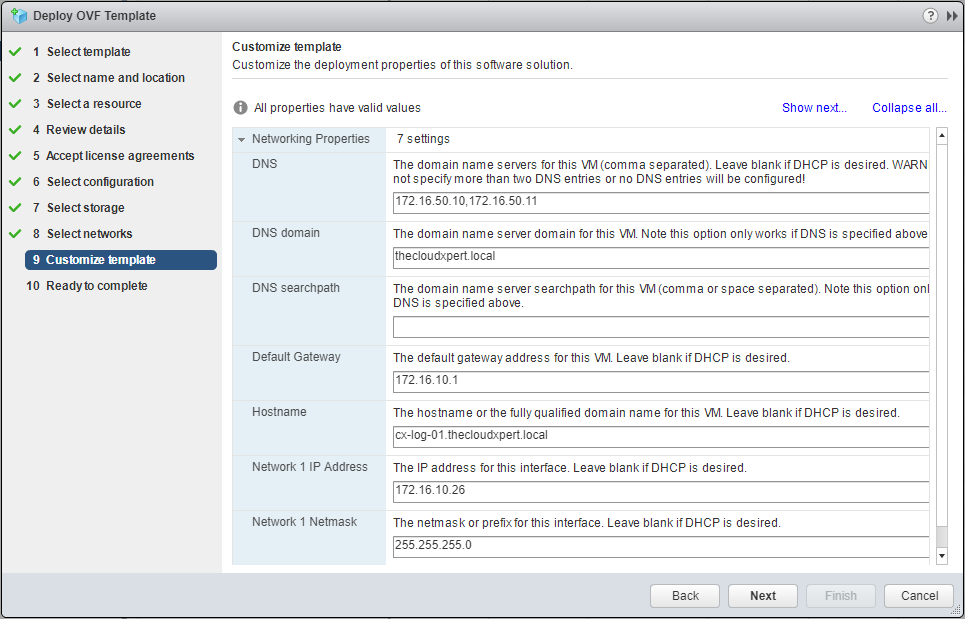

- Enter the following Networking information:
- DNS Server IPs (maximum 2)
- DNS domain
- Default Gateway
- Hostname
- IP Address
- Subnet Mask

- Click Networking Properties to minimize.

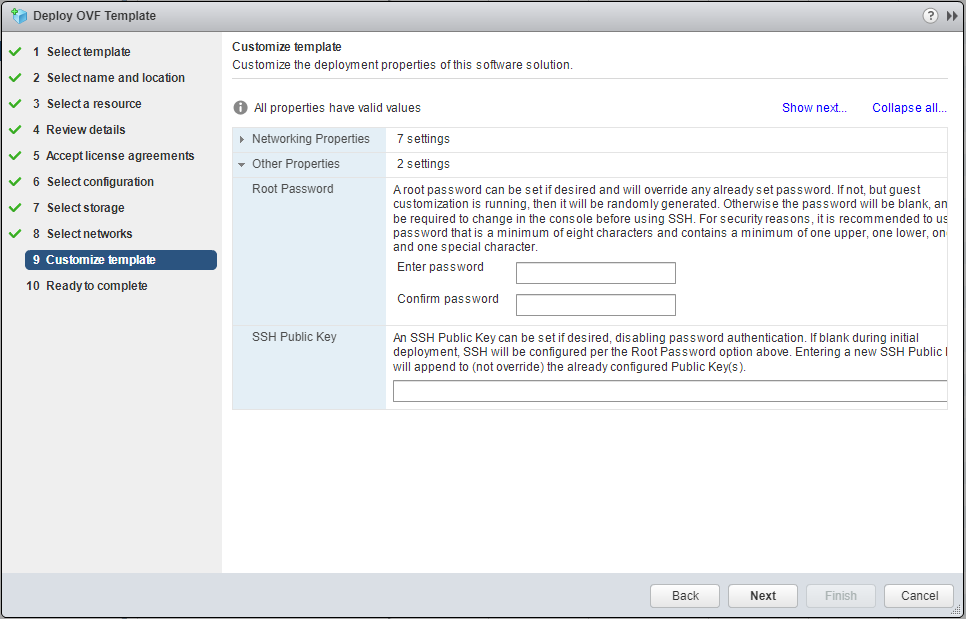

- Type the password for the appliance Root account and click Next.

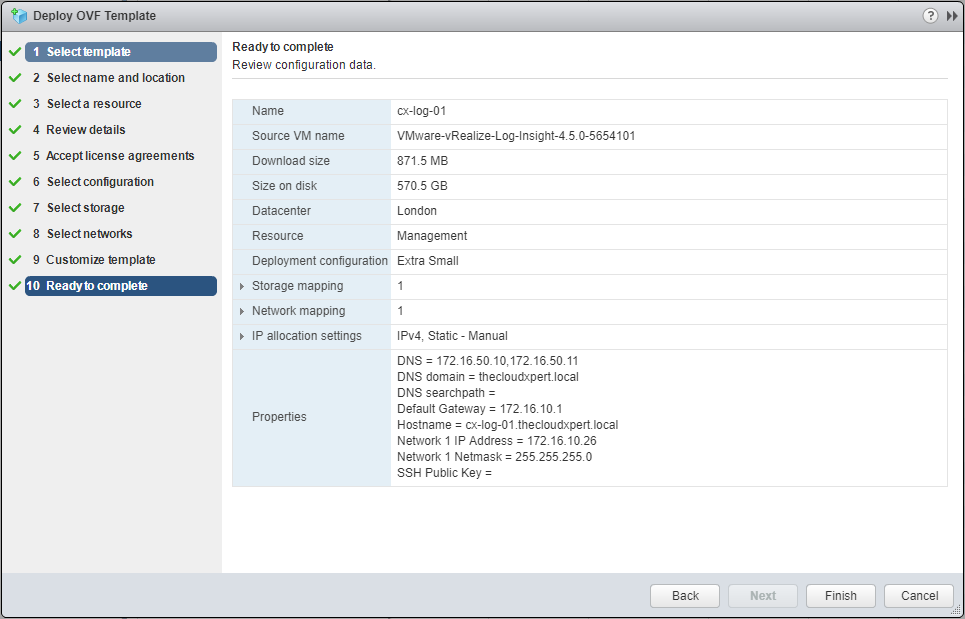

- The VMware vRealize Log Insight Appliance will now be deployed.
Note
Once deployed the Appliance will need to be powered on before continuing.
Configuring the first vRealize Log Insight Appliance

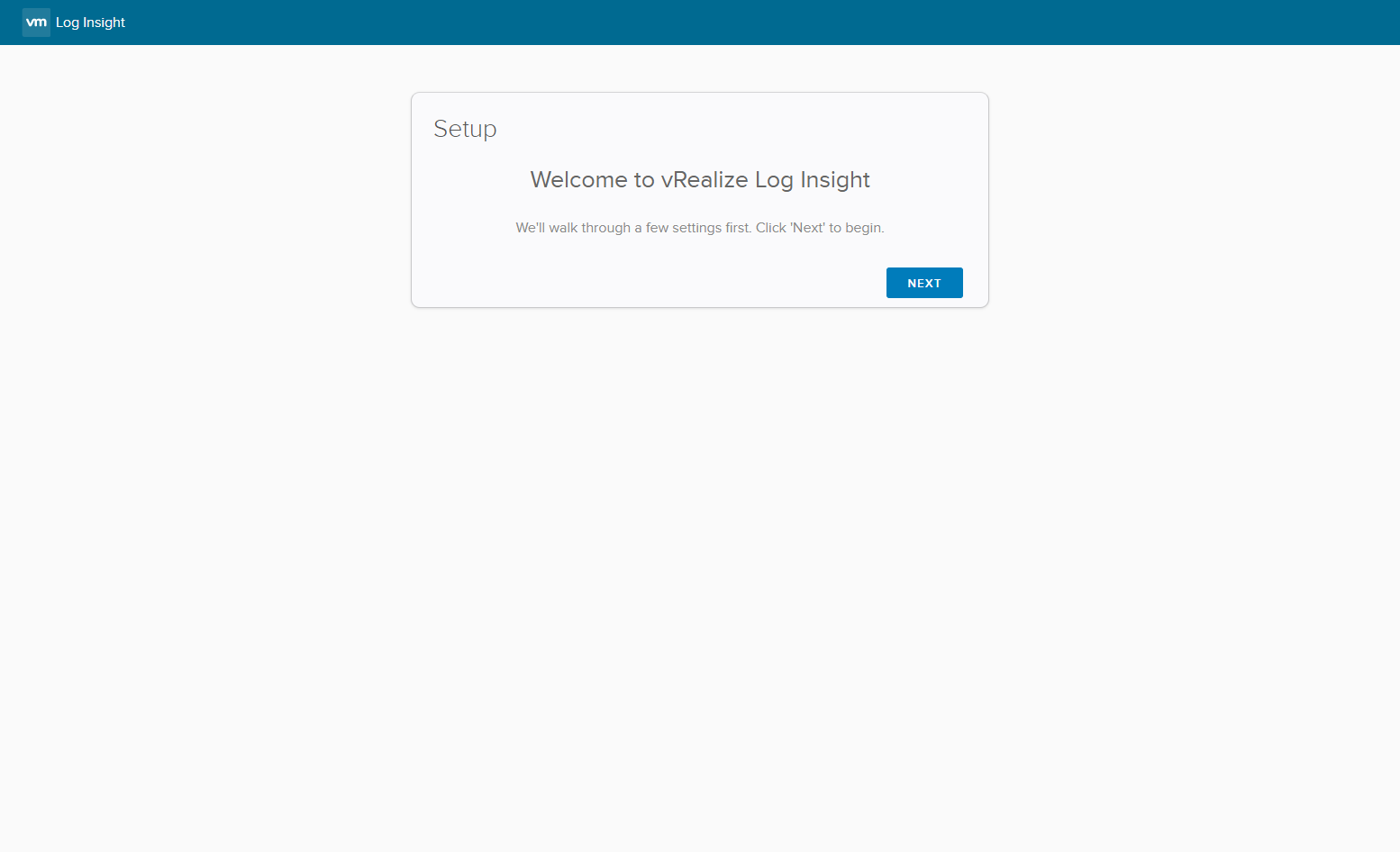

- Using a web browser, navigate to the VMware vRealize Log Insight page,
https://vli-appliance.fqdn
.

- Click Next.

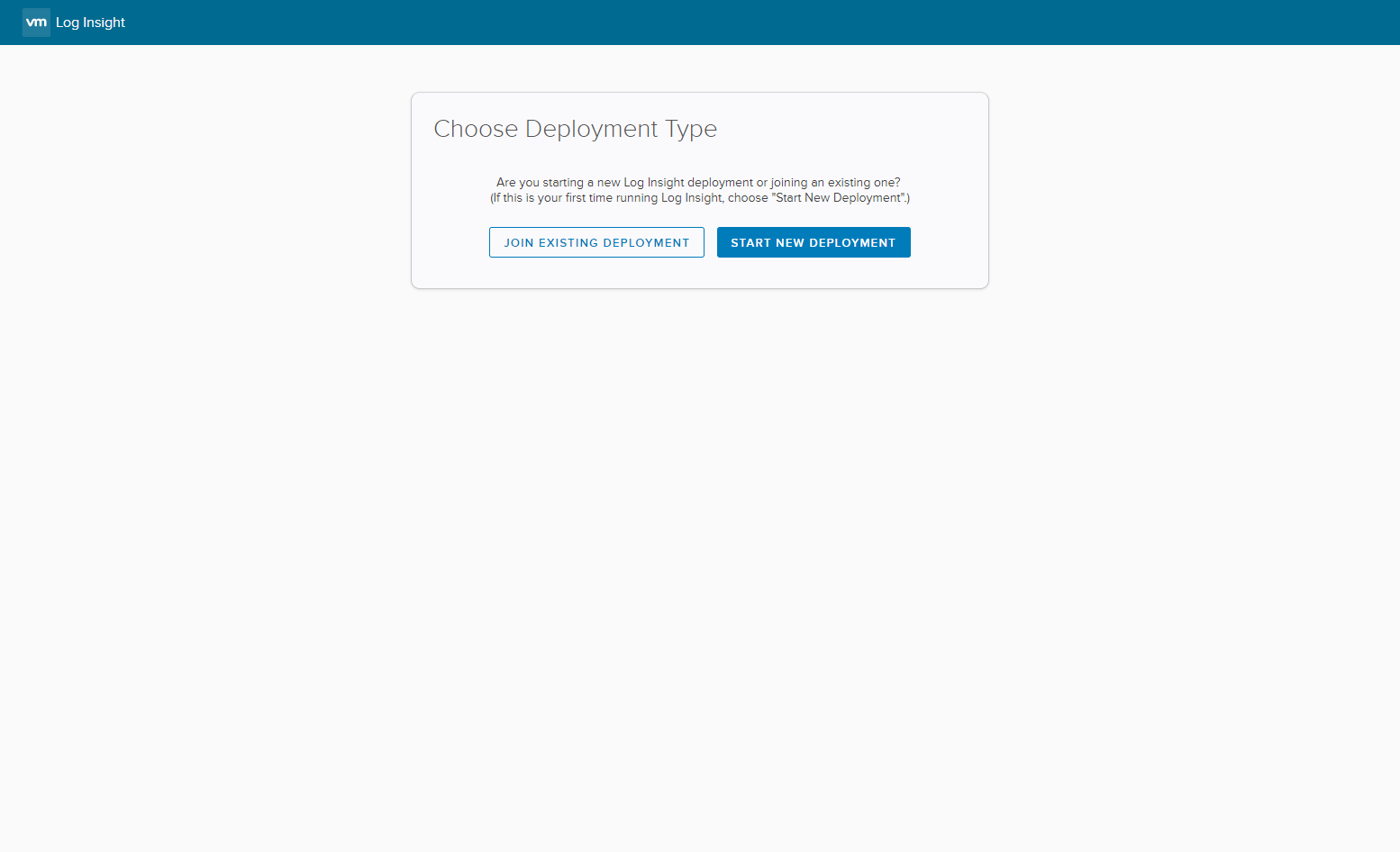

- Click Start New Deployment.

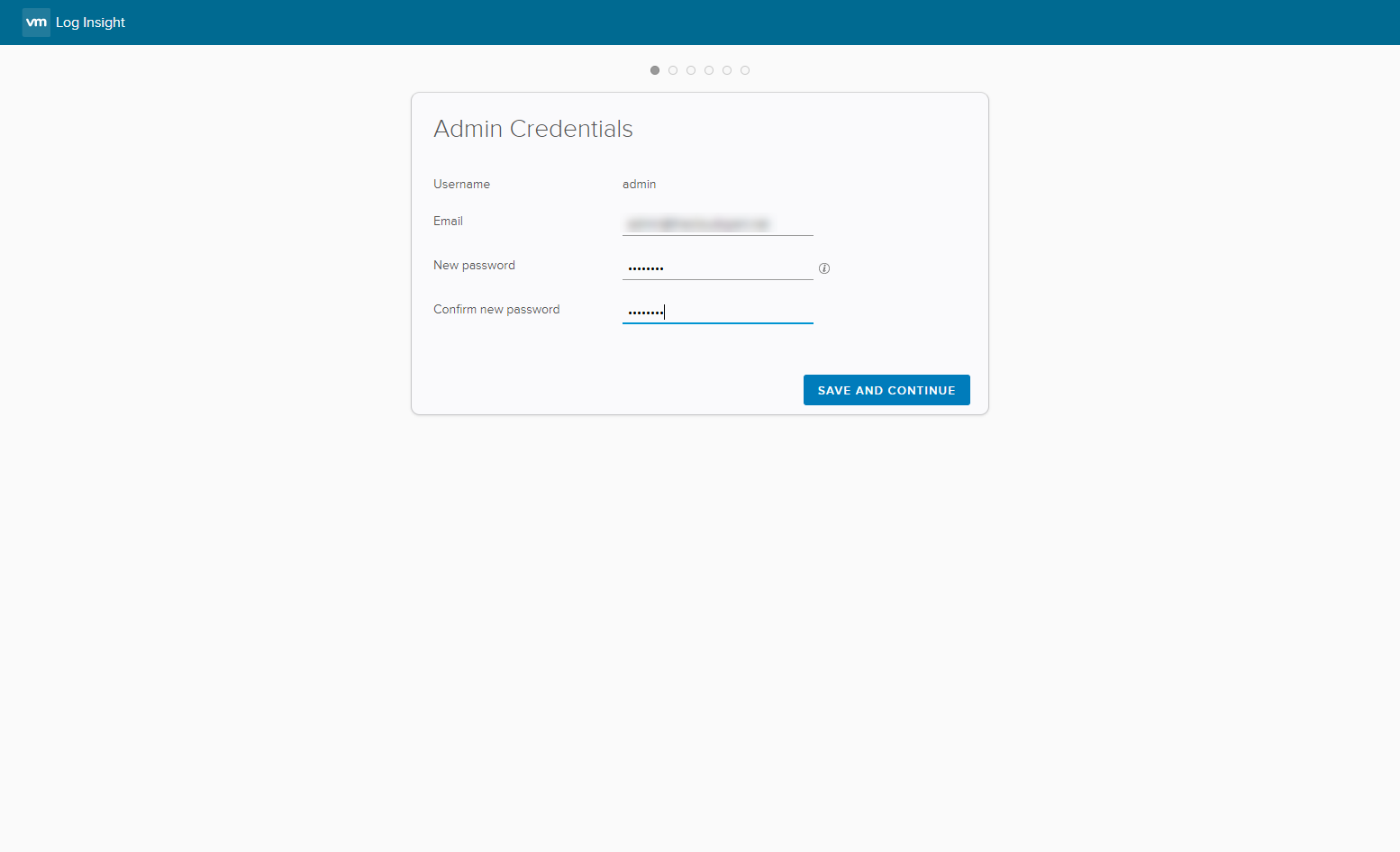

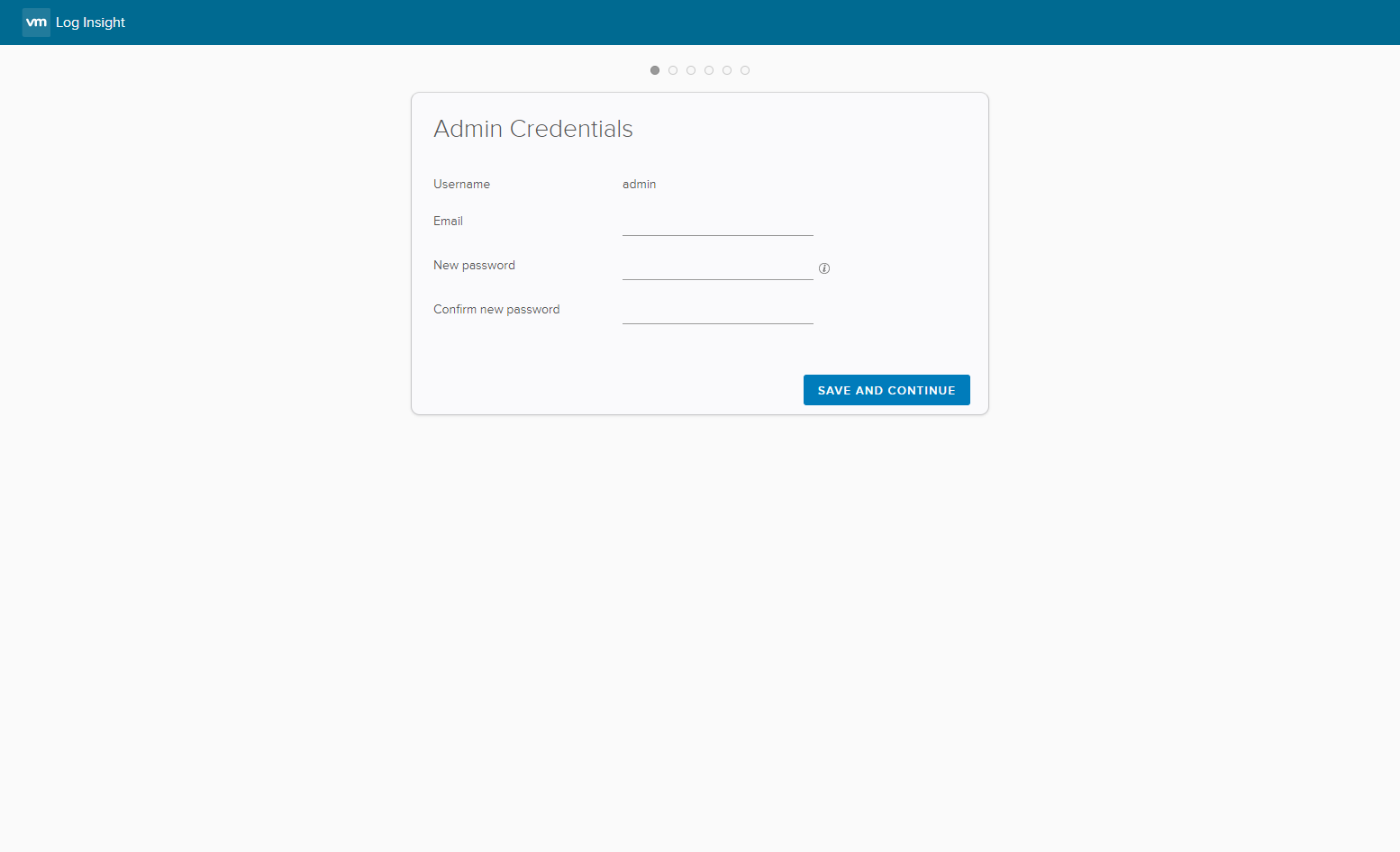

- Type the Email address and the password for the admin user

- Click Save and Continue.

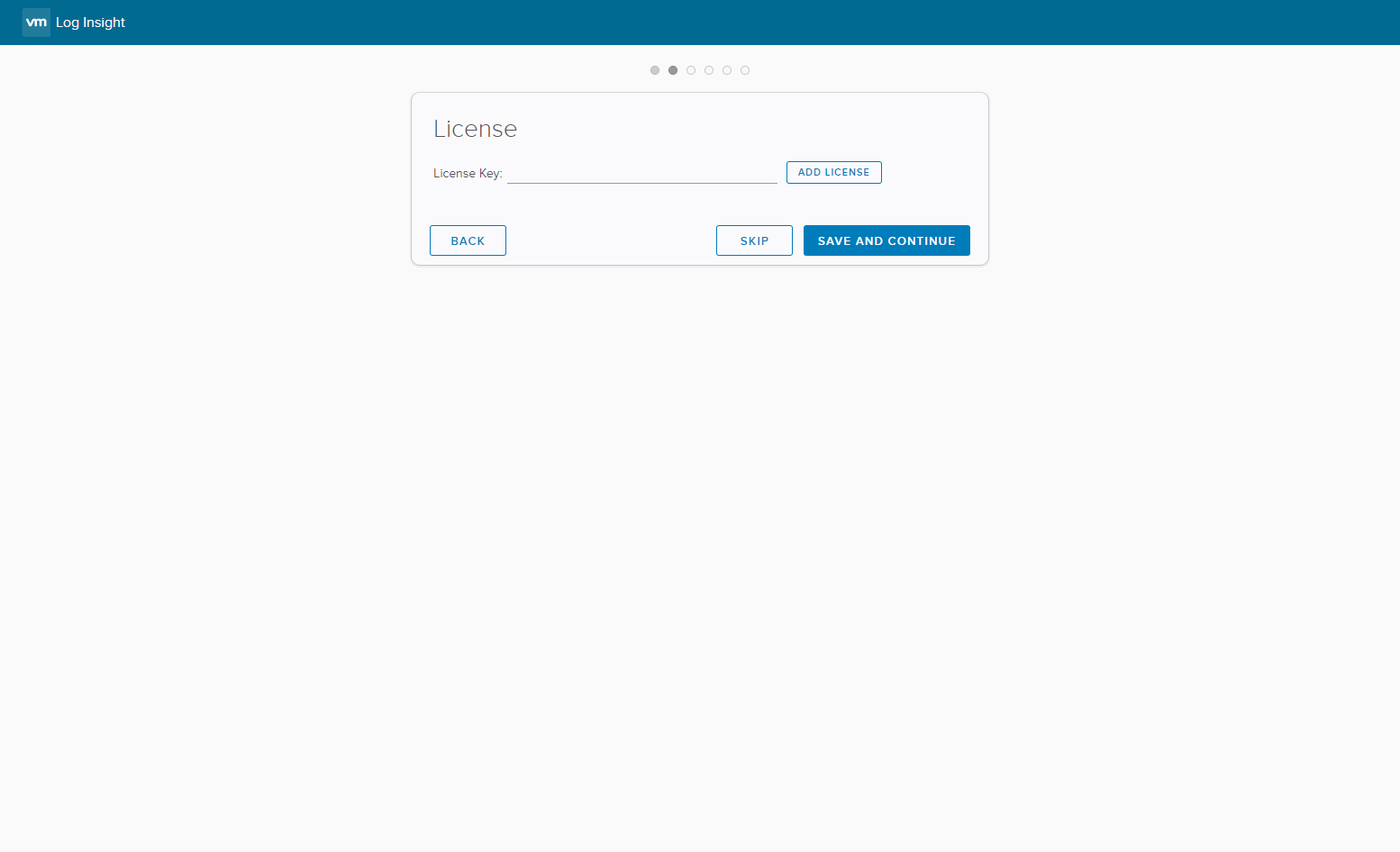

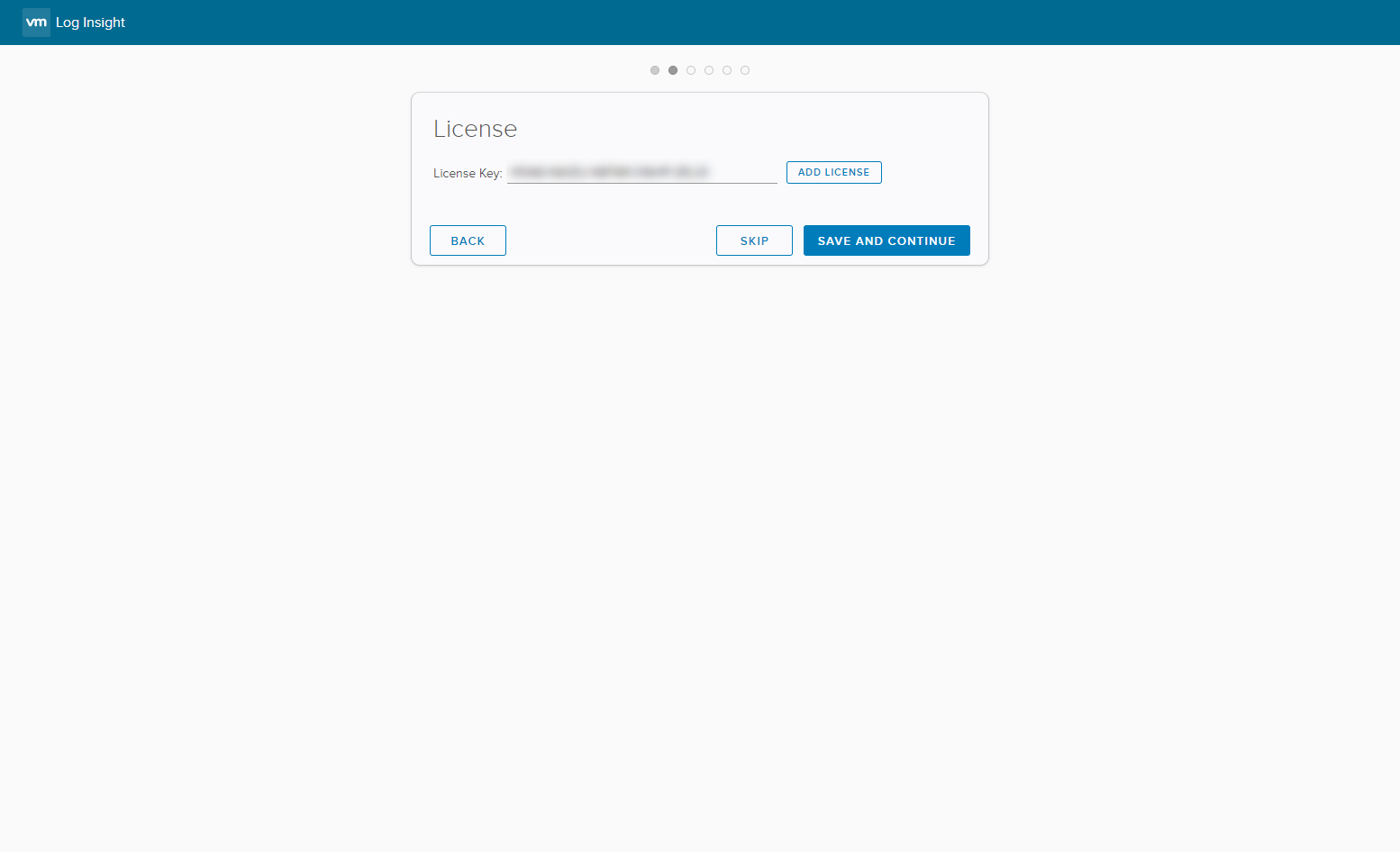

- Type the License Key (or click Skip).

- Click Save and Continue.

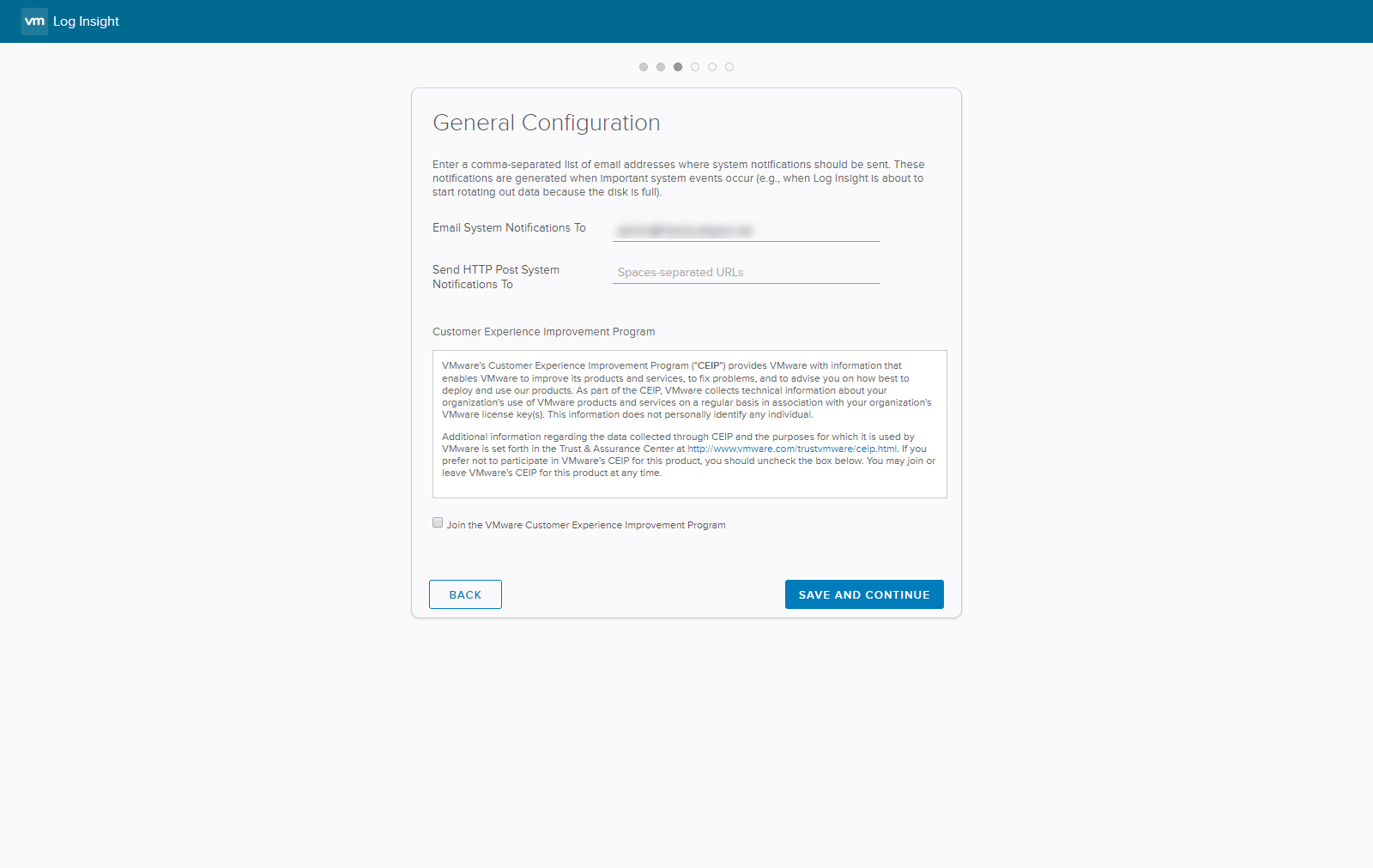

- Type an Email Address into the Email System Notification To textfield and (optional) add the Send HTTPS Post Notification To URL. Then Uncheck the Join the VMware Customer Experience Program checkbox.

- Click Save and Continue.

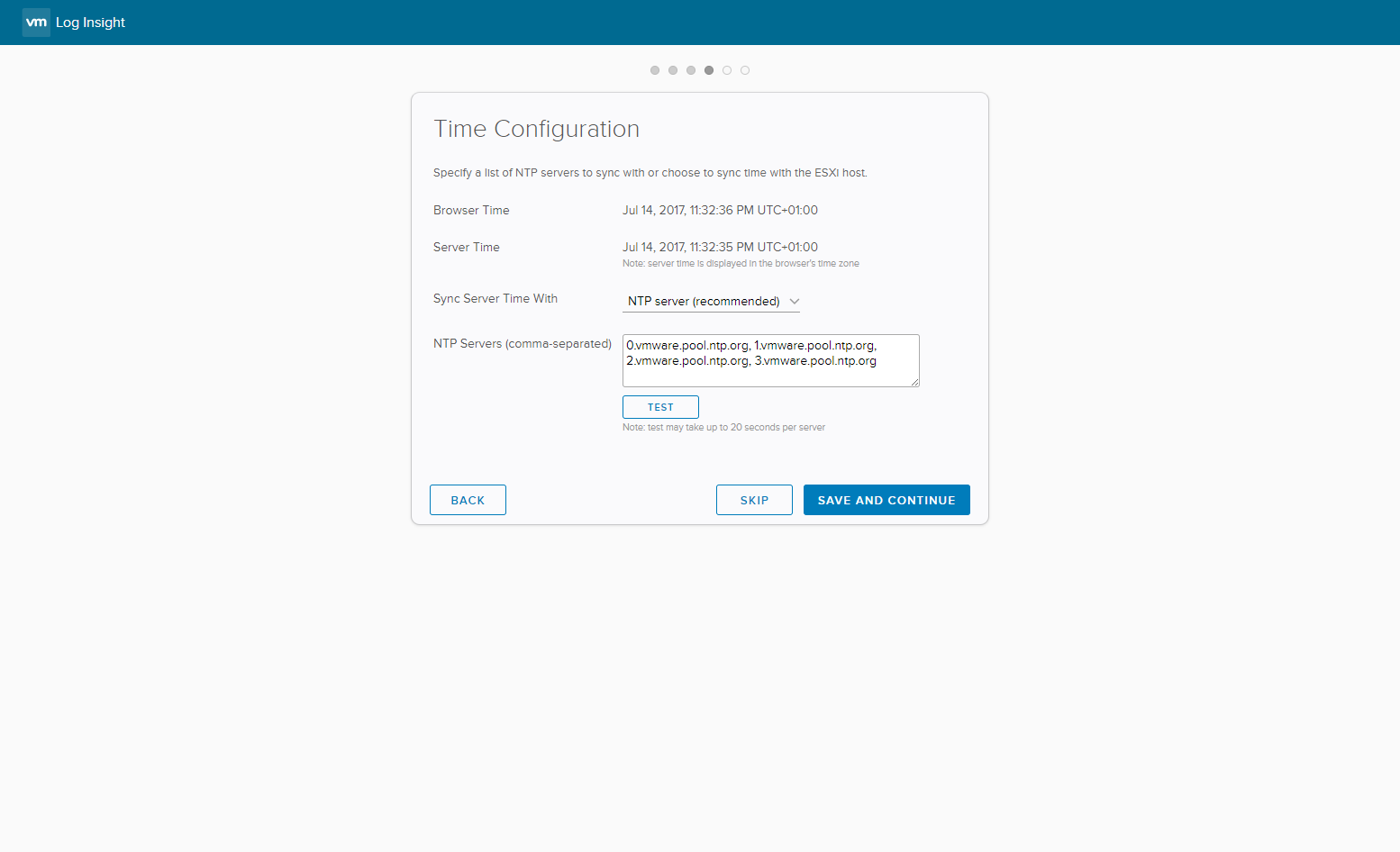

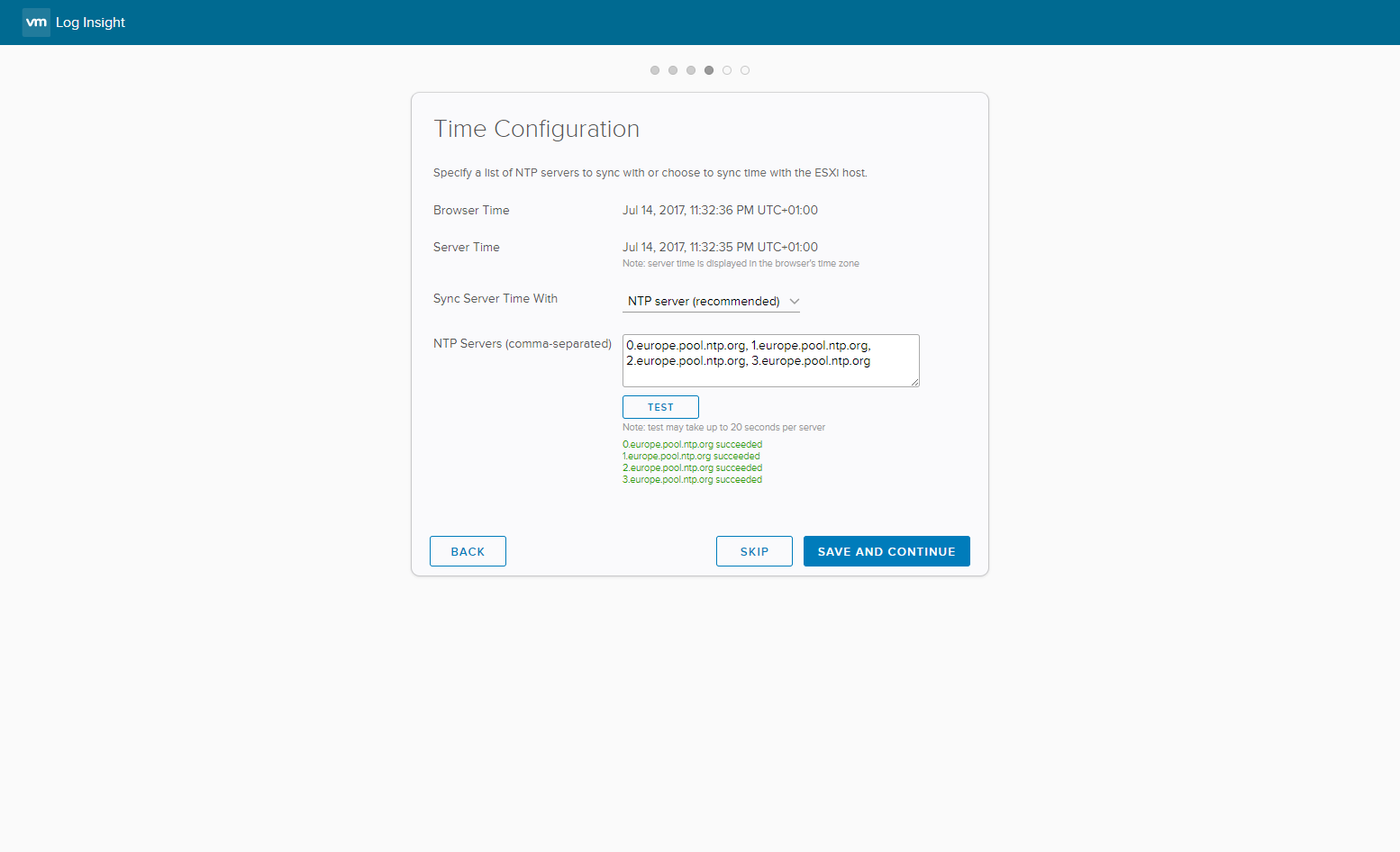

- If required, update the NTP Servers and click Test.

Note
I’m using the ntp servers from europe.pool.ntp.org but this could also be internal ntp servers.
- Click Save and Continue.

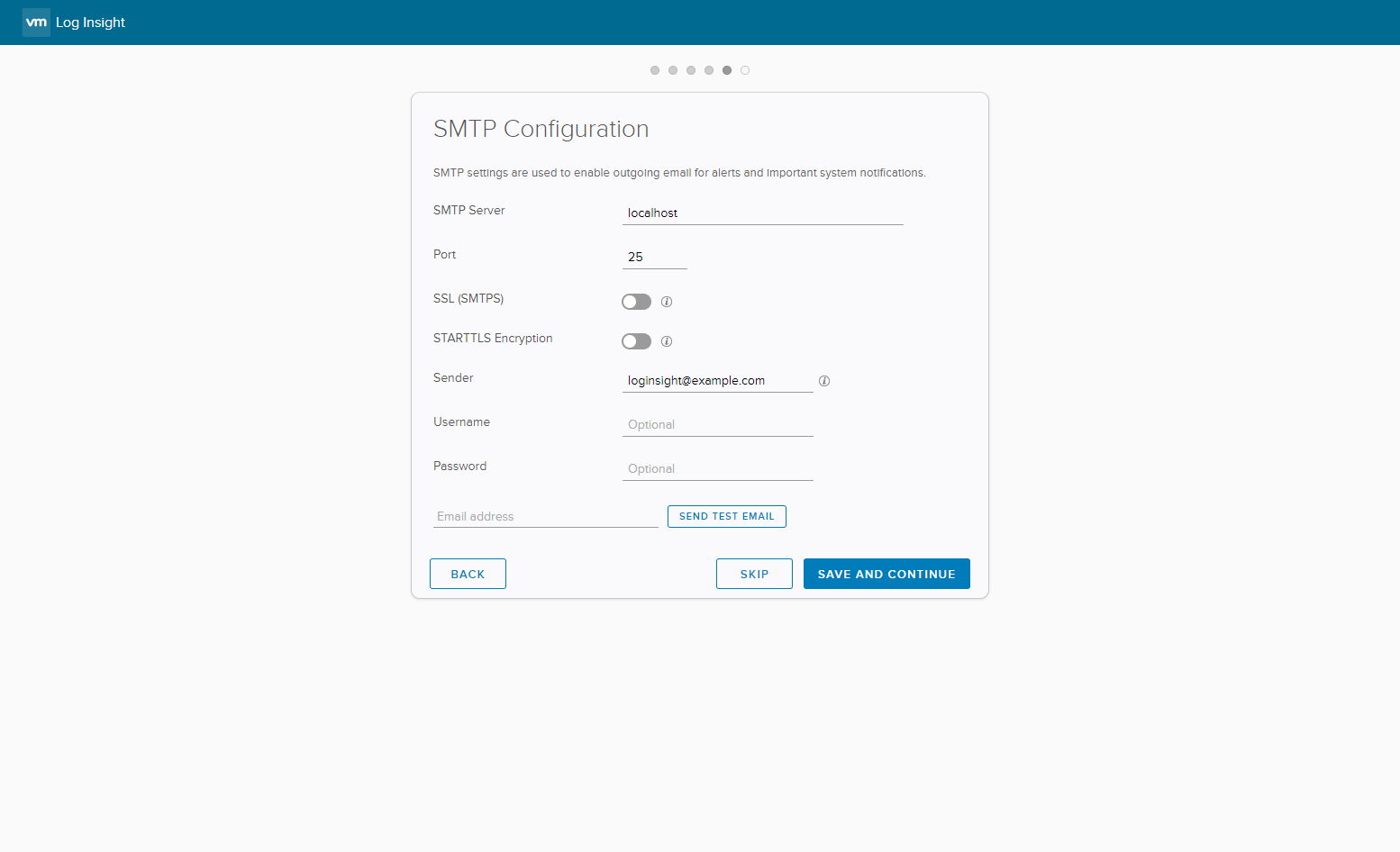

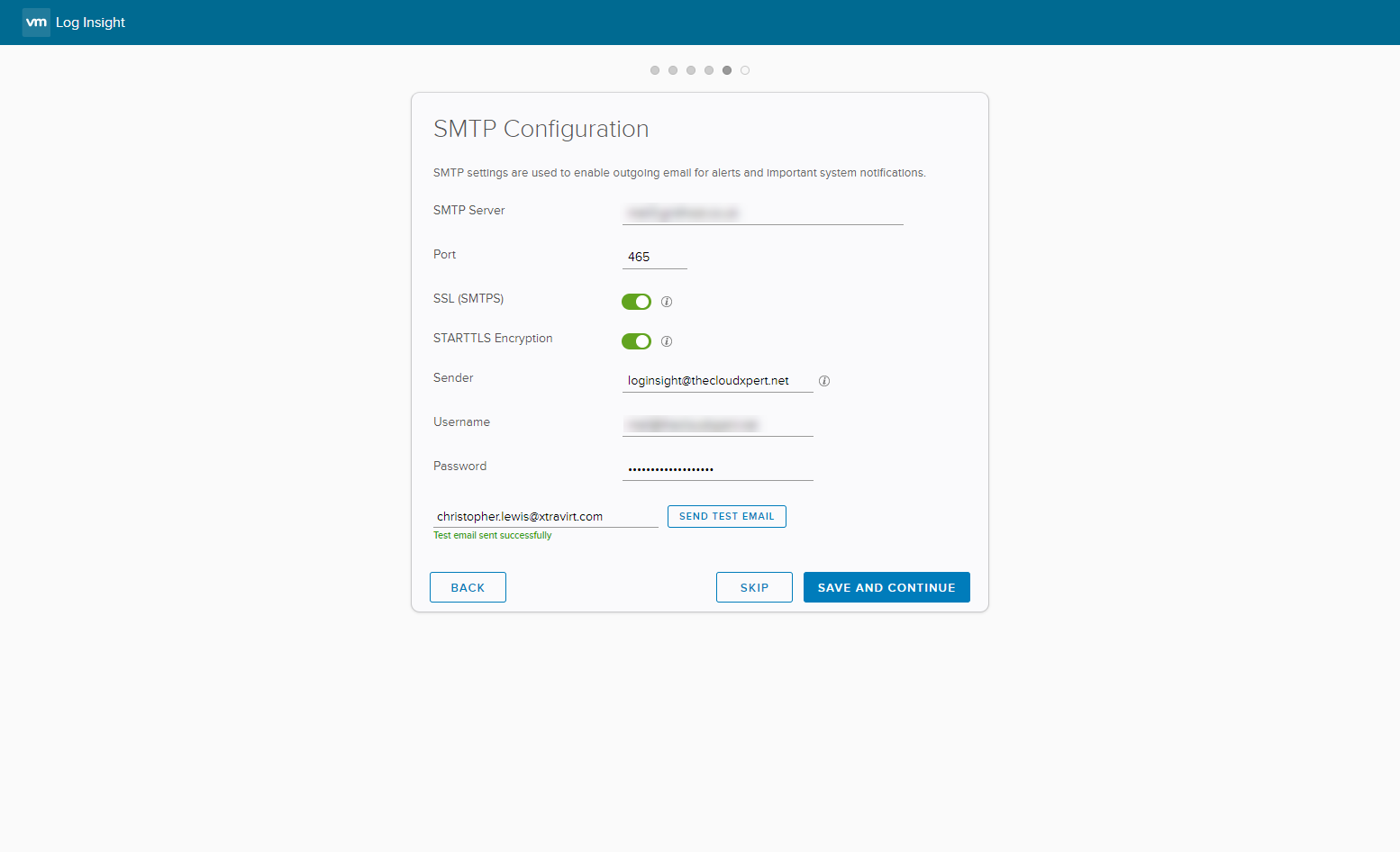

- (if required) Update the SMTP Configuration so that notifications can be sent from vLI (or click Skip).

- Click Save and Continue.

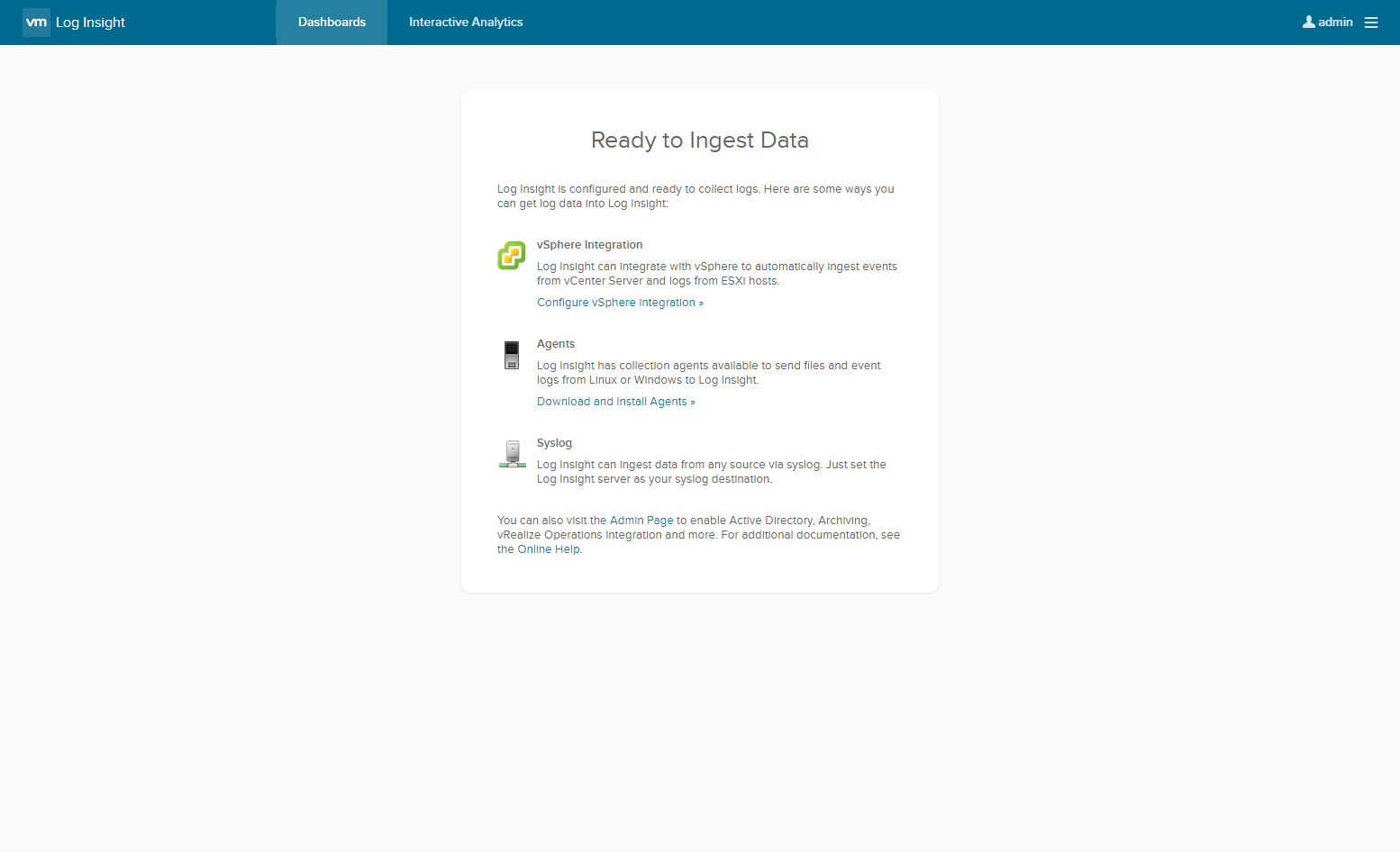

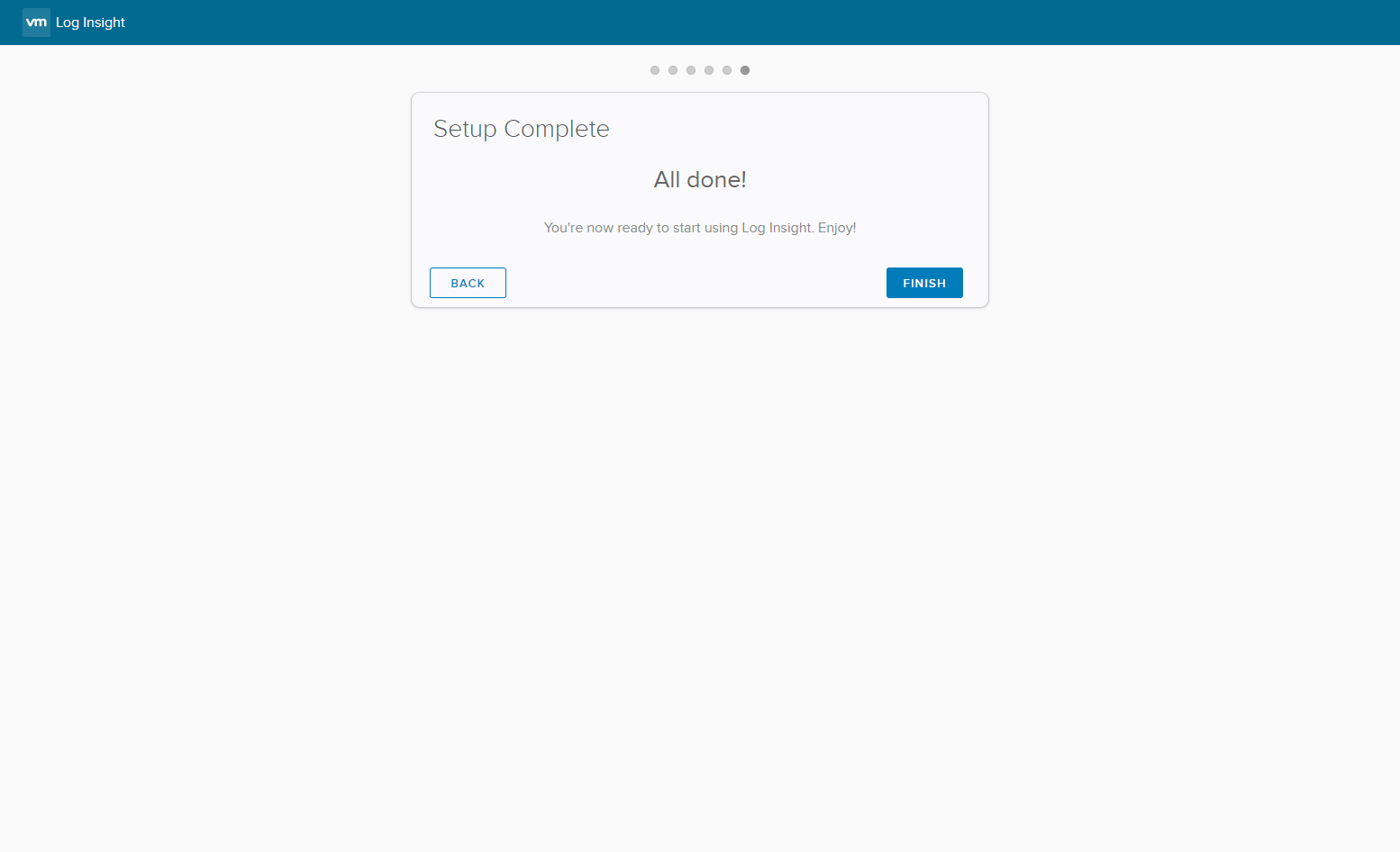

- Click Finished.

- Click Configure vSphere Integration.
Configure vSphere Integration

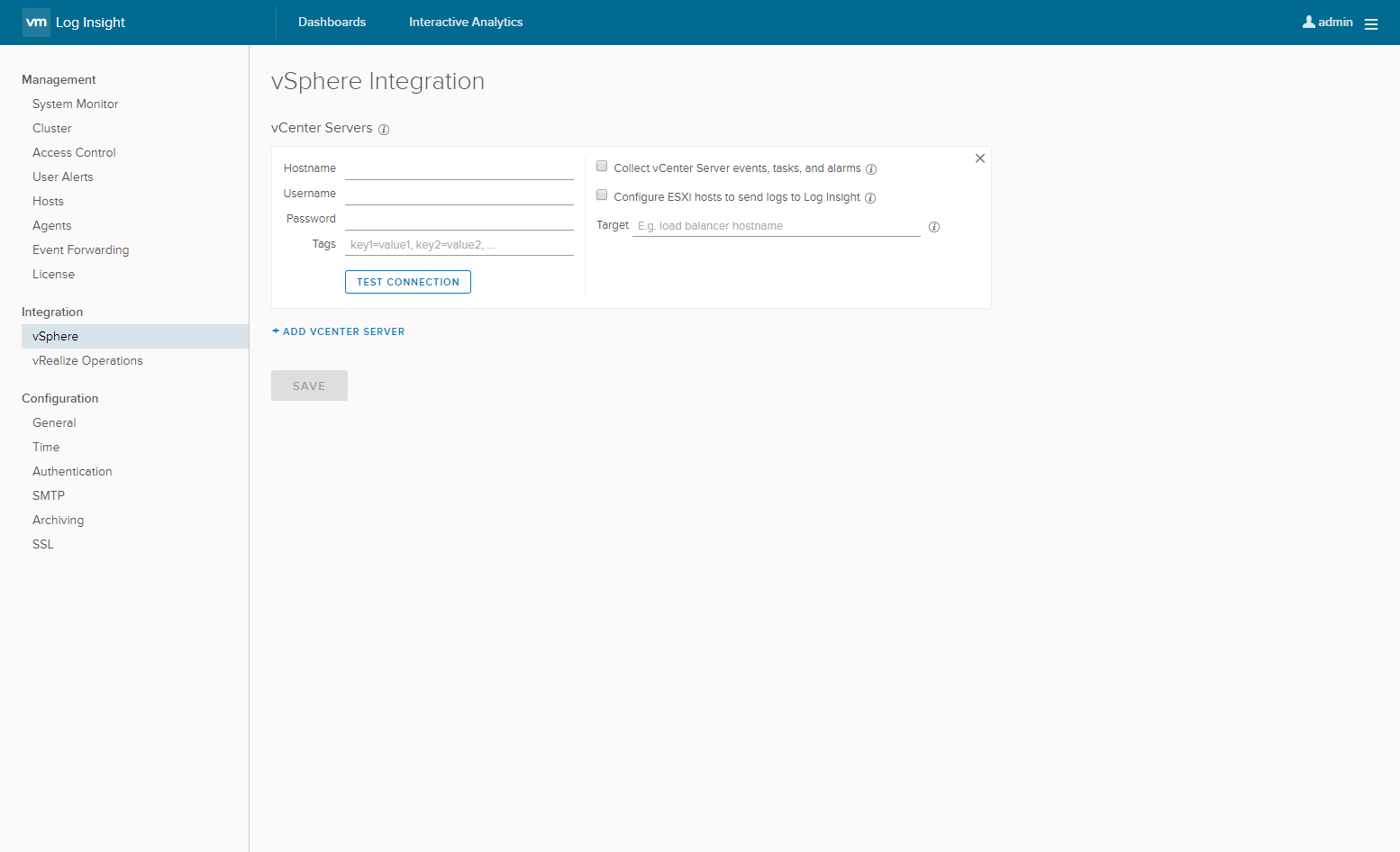

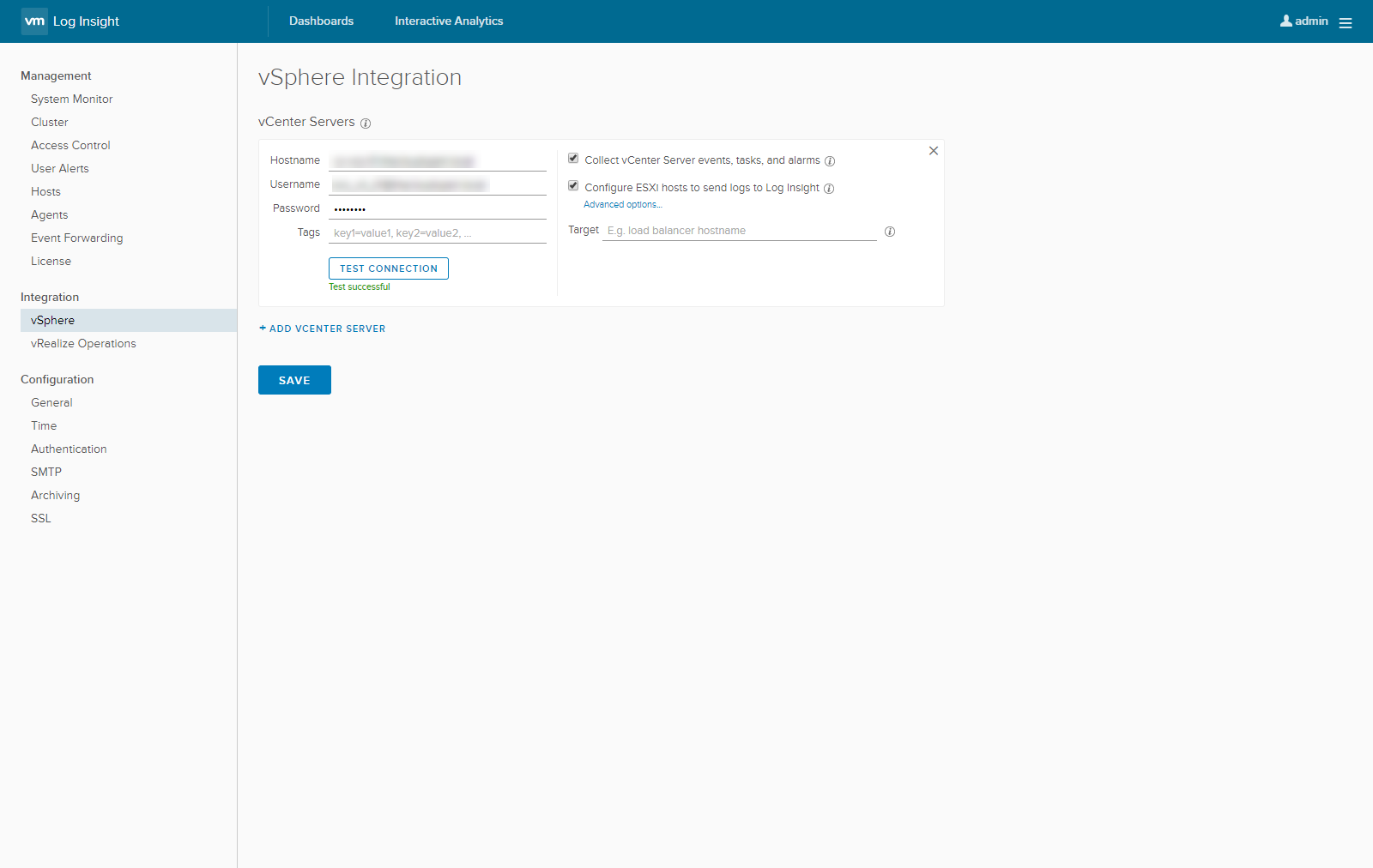

- Type the Hostname (vcenter.fqdn), the Username, the Password. (optionally) Check the Connect vCenter Server events, tasks and alarms checkbox. (optionally) Check the Configure ESXi hosts to send logs to Log Insight checkbox. Click Test Connection.

Note
The user account used for integration with vCenter and ESXi needs to have sufficient permissions allocated at the root (vCenter object):
Host.Configuration.Change settings
Host.Configuration.Network configuration
Host.Configuration.Advanced settings
Host.Configuration.Security profile and firewall
- Click Save.

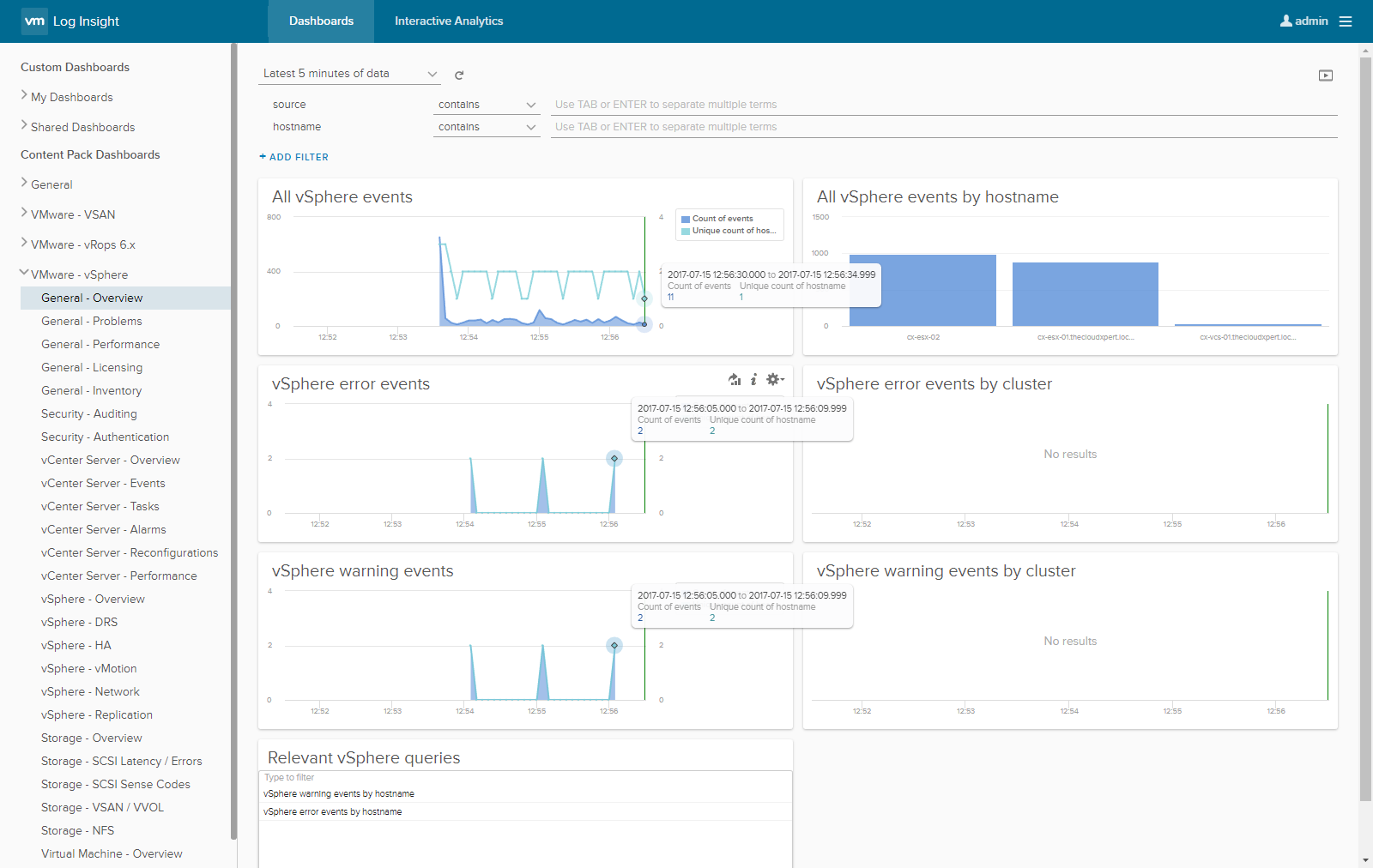

- Click Dashboards and then expand VMware-vSphere to show what is being captured!
