VCAP6-NV Deploy - Objective 5.3 - Configure and Manage Role Based Access Control
VMware NSX-V VCAP6-NV VCIX6-NV HOWTO
Published on 30 July 2017 by Christopher Lewis. Words: 553. Reading Time: 3 mins.
Skills and Abilities
Objective 5.3 - Configure and Manage Role Based Access Control
- Implement identity service support for Active Directory, NIS, and LDAP with Single Sign-On (SSO).
- Manage User rights:
- Assign roles to user accounts
- Change a user role
- Delete/disable/enable a user account
Objective Prerequisites
The following prerequisites are assumed for this Objective:
- A working VMware vSphere 6.x environment.
- A working VMware NSX 6.x environment.
Objective Breakdown
Implement identity service support for Active Directory, NIS, and LDAP with Single Sign-On (SSO)
Configuring SSO requires that NTP is configured correctly within the VMware NSX Manager. This is covered in HOWTO: Deploy and Configure the VMware NSX Manager Virtual Appliance - Part 2
Single Sign-On (SSO) is also configured within the VMware NSX Manager. This is covered within HOWTO: Deploy and Configure the VMware NSX Manager Virtual Appliance - Part 3
Manage User Rights
There are four VMware NSX User roles that can be applied to users or groups of users. These are:
- Enterprise Administrator - NSX Operations and Security.
- NSX Administrator - NSX Operations only.
- Security Administrator - NSX Security only.
- Auditor - Read Only.
Manage User Rights: Assign roles to User Accounts or Groups
In this example, we are going to assign the NSX Administrator role to an individual user. In real life, as a best practice recommendation, you would assign the role to a group so that all members of the group would be given the role.
Note: These steps assume you are not even logged into vCenter Server. Skip the first few steps if you are!
Using your favourite web browser, navigate to the vCenter Server login page (https://vcenter.fqdn).
Enter appropriate User name and Password and click Login.
Click Networking and Security.
Click NSX Managers.
Click on the NSX Manager IP Address.
Click the Manage tab.
Click Users.
Click Add (+).
Enter the name of the User into the field provided.
Click Next.
Select the NSX Administrator option.
Click Finish.
Manage User Rights: Change a user role
In this example, we’re going to correct the user role for the NSX.SecAdmin user, who should be assigned the Security Administrator role.
Note: These steps assume you are not even logged into vCenter Server. Skip the first few steps if you are!
Using your favourite web browser, navigate to the vCenter Server login page ( https://vcenter.fqdn ).
Enter appropriate User name and Password and click Login.
Click Networking and Security.
Click NSX Managers.
Click on the NSX Manager IP Address.
Click the Manage tab.
Click Users.
Select the NSX.SecAdmin user and click Edit.
Select the Security Administrator option.
Click Finish.

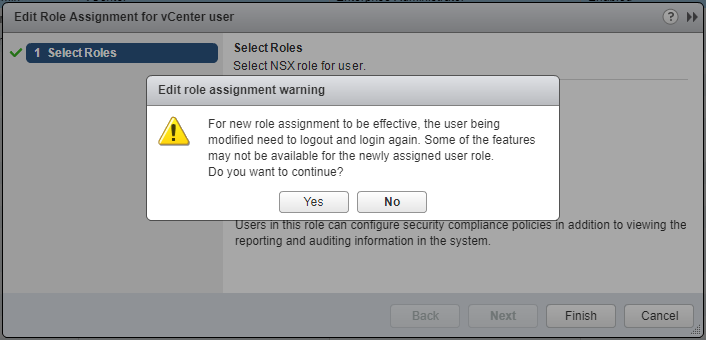

Click Yes.
Manage User Rights: Delete/disable/enable a user account
In this example, we are going to complete the following:
- Remove the Auditor role from the NSX.Auditor user
- Enable the NSX.Admin user
- Disable the NSX.EntAdmin user.
Note: These steps assume you are not even logged into vCenter Server. Skip the first few steps if you are!
Using your favourite web browser, navigate to the vCenter Server login page (https://vcenter.fqdn).
Enter appropriate User name and Password and click Login.
Click Networking and Security.
Click NSX Managers.
Click on the NSX Manager IP Address.
Click the Manage tab.
Click Users.
Highlight the NSX.Auditor user account and click Delete (X).
Click Yes.
Highlight the NSX.Admin user account and click Enable.
Highlight the NSX.EntAdmin user account and click Disable.
