Replacing the vRealize Automation 7.3 Appliance VAMI Site Certificate

Certificates

Published on 7 April 2019 by Christopher Lewis. Words: 707. Reading Time: 4 mins.

This is the sixth post in a series of posts covering the replacement of vRealize Automation SSL Certificates. In this post, we will tackle the replacement of the vRealize Automation Appliance VAMI Site Certificate.

This post is based on the VMware procedure and this is documented here .

Prerequisites

The following are expected prerequisites for this walkthrough:

A fully deployed and working vRealize Automation solution.
A set of certificate files:
The RSA Private Key used to encrypt the vRA Appliance certificate.
The Root CA Certificate file.
The vRA Appliance Certificate file.
The new Server.PEM file.
The Root CA Certificate and any Subordinate/Intermediate CA Certificates are installed within the appropriate Certificate store on the local machine (normally the Trusted Root Certification Authorities and the Intermediate Certification Authority respectively).

The Problem

The issue we see is that when you browse to https://vra.fqdn:5480, the site is untrusted.

In addition, when using the embedded vRealize Orchestrator, the same certificate is used for vRealize Orchestrator Control Center the https://vra.fqdn:8283/vco-controlcente.

In fact, in my experience, with Google Chrome (and if you are using self-signed certificates), you can’t actually access the vRO Control Center until the certificate has been updated due to HSTS errors.

Locate the Management Agent Identifier

Note: We will be using the Management Agent Id to ensure that the management agent certificate automatic recognition is completed successfully once the VAMI certificate has been updated.

Log into any of the vRA IaaS Servers (IaaS Web, IaaS Manager, DEM Worker or Agent Servers) using RDP or VMRC using an appropriate user/administration account.

Open Windows Explorer and navigate to the vRA Management Agent folder.

Open the Management Agent Configuration File (VMware.IaaS.Management.Agent.exe.config) using your text editor of choice.

Record the value from the id attribute of the agentConfiguration element.

Replacing the vRealize Automation VAMI Site Certificate

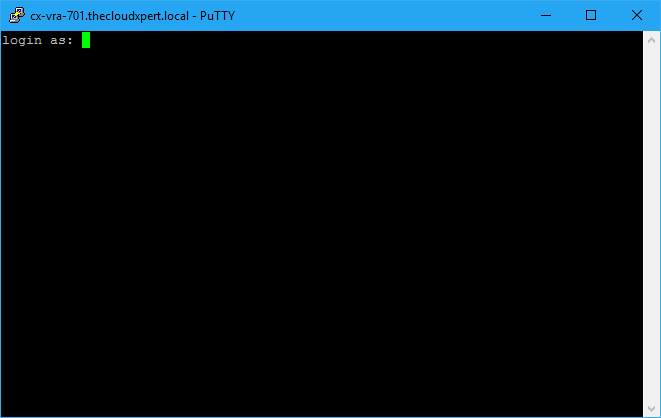

Open an SSH session to the vRealize Automation appliance, vra.fqdn using your tool of choice (I tend to use PuTTY).

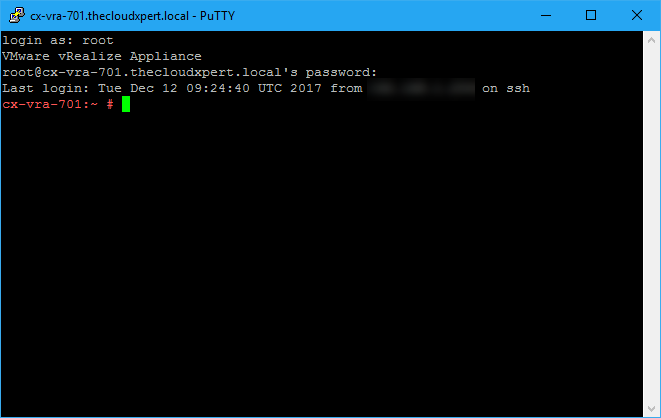

Log into the session using the root user and the password specified for the root account during the deployment.

Take a backup of the existing SSL certificate by typing

cp /opt/vmware/etc/lighttpd/server.pem /opt/vmware/etc/lighttpd/server.pem-bak

and pressing enter.

Copy the new server.pem file onto the vRA Appliance using your preferred method (I personally use WinSCP). The file should replace the existing server.pem file, which is located in /opt/vmware/etc/lighttpd/server.pem.

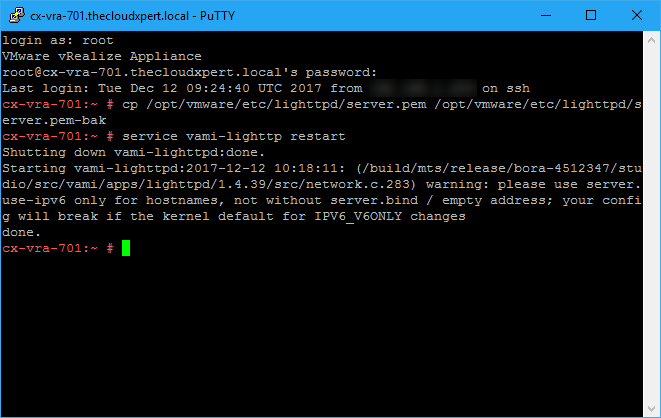

Restart the VAMI-lighttp service by typing service vami-lighttp restart and pressing enter.

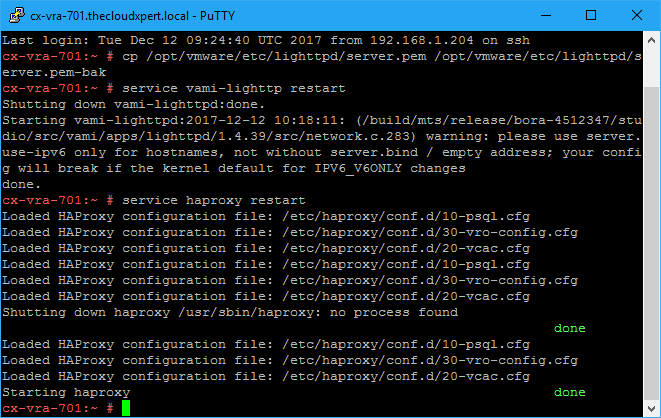

Restart the haproxy service by typing service haproxy restart and pressing enter.

Type exit and press enter.

Note: Remember this process has to be completed on each of the vRealize Automation Appliance nodes.

Check the Certificates

When you now browse to https://vra.fqdn:5480, the site certificate should have been updated.

When you now browse to https://vra.fqdn/vco and click Orchestrator Control Center, the certificate for the site should be now be secured.

Get the new Certificate SHA1 Thumbprint/Fingerprint

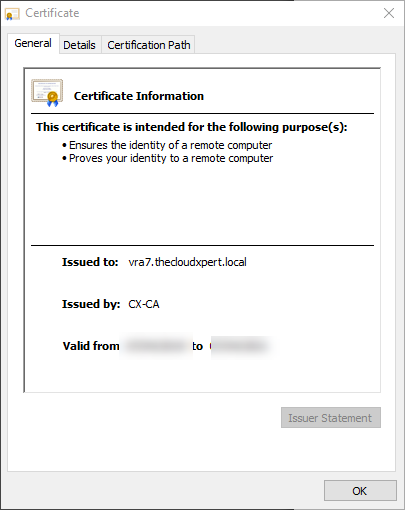

To obtain the new SHA1 SSL Thumbprint to use with the Management Agent, navigate to the Virtual Appliance Management Interface (https://vra.fqdn:5480) click on the Certificate in a web browser.

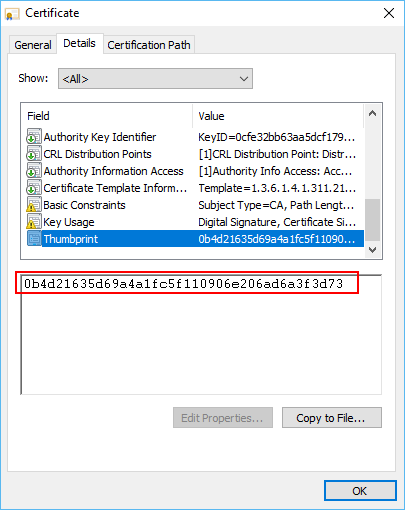

Click the Details tab and scroll down to the certificates Thumbprint attribute.

This will be required in the next section!

Manually Updating Management Agent Certificate Recognition

Note: Apparently this should happen automatically in a distributed deployment. It is worth checking and verifying with the manual steps though!

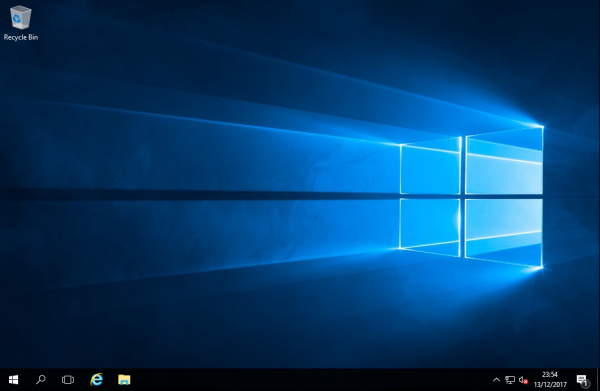

Log into any of the vRA IaaS Servers (IaaS Web, IaaS Manager, DEM Worker or Agent Servers) using RDP or VMRC using an appropriate user/administration account.

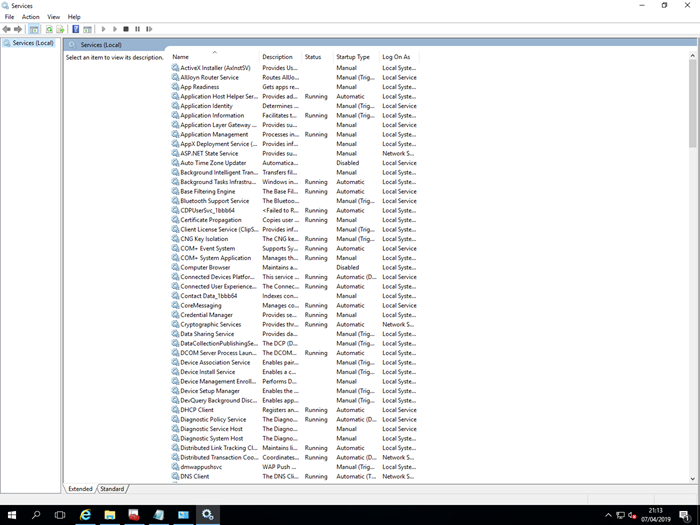

Open the Services by navigating to Start > Administrative Tools and select Services.

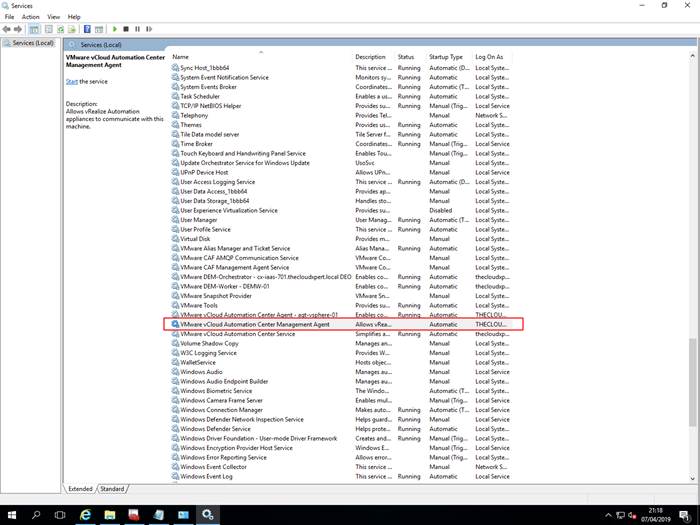

Scroll down and highlight the VMware vCloud Automation Center Management Agent Service and click Stop.

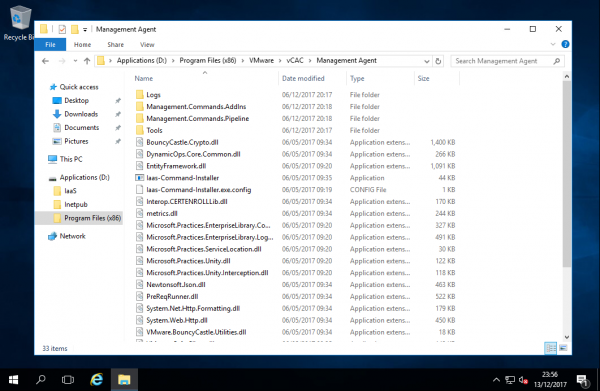

Open Windows Explorer and navigate to the vRA Management Agent (in my case that is D:\Program Files\vCAC\Management Agent) folder.

Copy the Management Agent Configuration File (VMware.IaaS.Management.Agent.exe.config) to create a backup and then open the file using your text editor of choice.

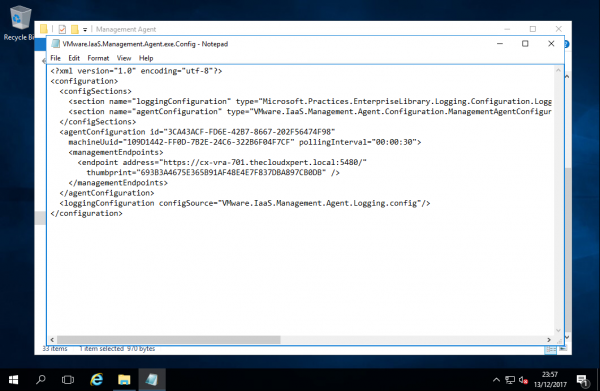

Locate the the correct ID and then replace the thumbprint with the** SHA1 Fingerprint **value from the new certificate.

Save the changes to the Management Agent Configuration File and restart the** VMware vCloud Automation Center Management Agent Service** service.

As a final check that everything is still working, log back into the Virtual Appliance Management Interface (https://vra.fqdn:5480) and confirm that the Cluster is still communicating.
